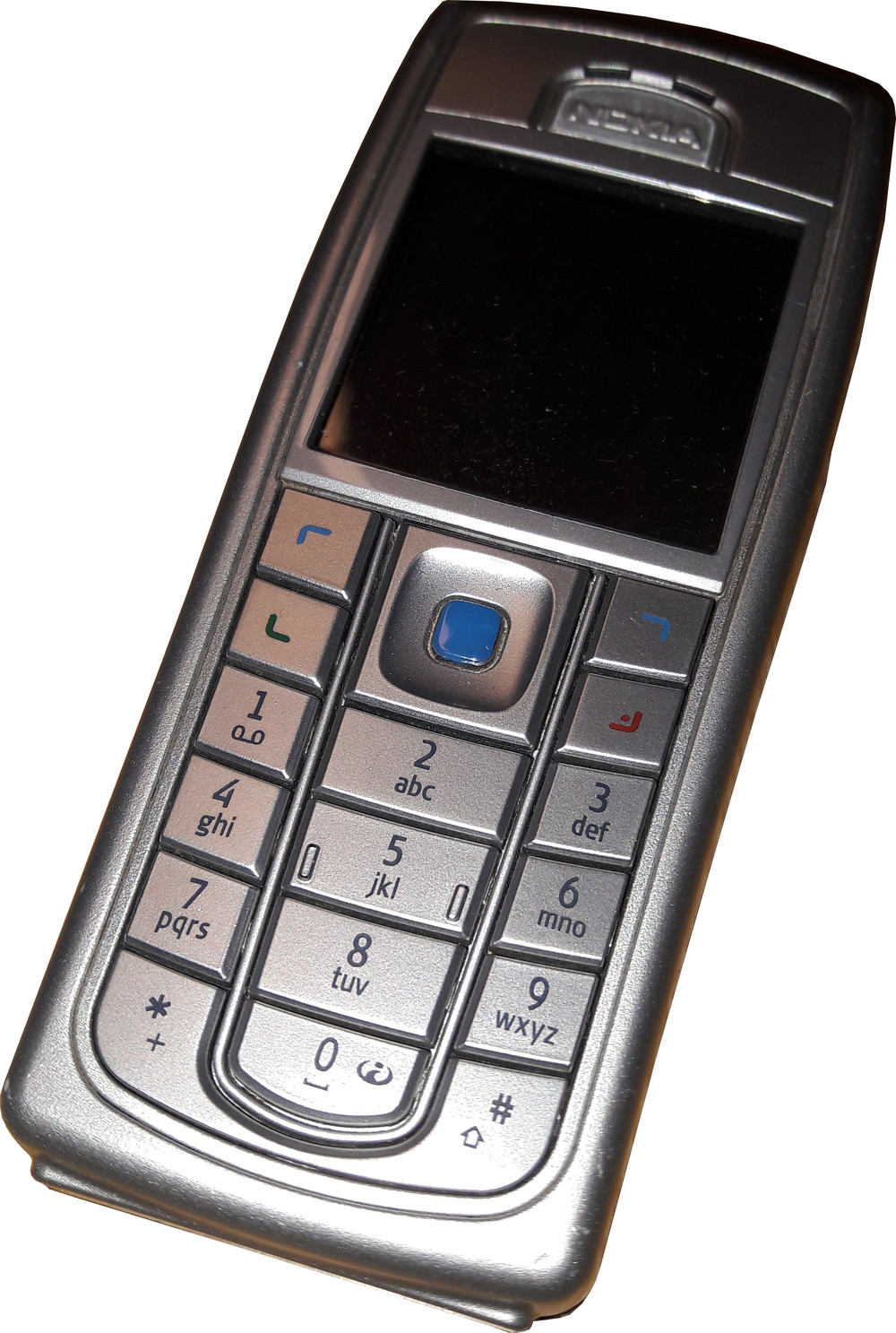

Nokia 6230

Nokia 6230

It features a 16-bit TFT color screen with a resolution of 128×128 pixels, a VGA camera that can record video clips in H2.63 (SubQCIF) format at 128×96 pixels at 15 FPS, built-in Bluetooth wireless technology, FM Radio (when a wired headset is attached to the Pop Port interface to act as an antenna), and playback of 3GP video/audio at up to 30 FPS and MP3, AAC and AMR audio. It is also EGPRS (EDGE) capable of speeds up to 220 kbit/s. In addition, it has changeable Xpress-on covers available for purchase.

It uses an Extended Li On Battery of 850 mAh. The 6230 accepts MMCmemory cards up to 4 GB in capacity formatted in FAT32 or FAT16 file systems (supported by later firmware releases) on which multimedia files and data can be stored. SD Cards are not supported. It operates on either GSM900/1800/1900 MHz (Nokia 6230 RH-12), or GSM 850/1800/1900 MHz (Nokia 6230b RH-28) for the North American market.

It was the first non-smartphone with an expandable memory card slot.



Nokia 6230
