Processor

• Intel Mobile Pentium II processor
• 233MHz (1.7V) clock speed
• Integrated co-processor
• 32KB internal cache
• Integrated 512KB pipelined burst SRAM Level 2 cache
• Data/Address Bus Width: 64-bit/32-bit
• 66MHz Front Side Bus

Memory

• 64Mbit Synchronous DRAM, 3.3V, 60ns
• 32MB standard, expandable to 160MB
• Internal memory expansion slot

BIOS

• APM V1.2; ACPI V1.0; PnP V1.0a; VESA V2.0; DPMS; DDC2B; DMI 2.0, PCI BIOS

System Architecture

• PCI Bus V2.1: Intel 440BX system chipset

Disk Drives

• 4.1 billion byte Enhanced IDE, 2.5" Hard disk
• Service -removable
• 12.7 mm height
• 13ms average access time
• Supports PIO Mode 4 or Ultra DMA 33 mode 2
• Diskette Drive:
• Built-in 3.5", 1.44MB

CD-ROM

• Built-in 24X max. speed CD-ROM
• 130ms average access time
• 3,600KB/s average data transfer rate

Display System

• 12.1" diagonal

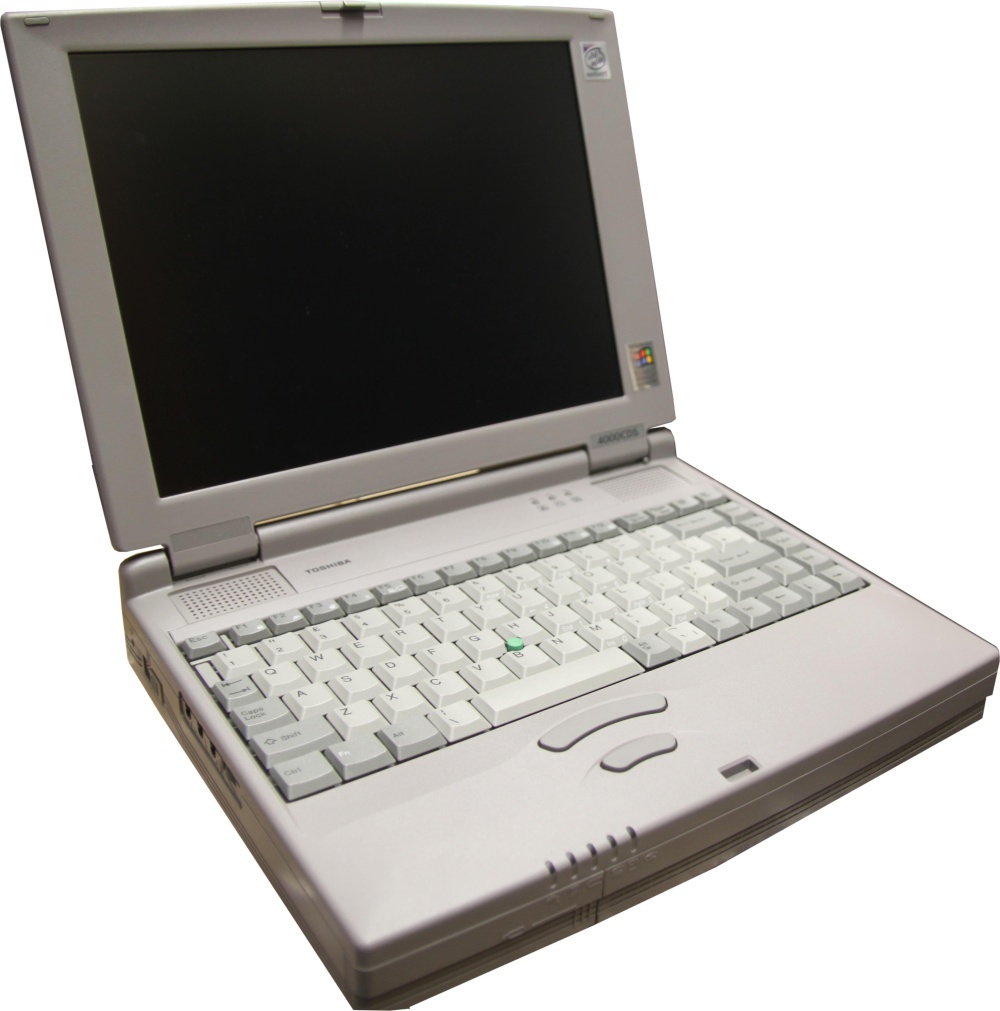

• Color bright dual scan color display (Satellite 4000 CDS): up to 16 million colors at 800 x 600 resolution
• TFT active matrix color display (Satellite 4000 CDT) : up to 16 million colors at 800 x 600 resolution
• External Color Support:
• 800 x 600 and 640 x 480; 85Hz Non-Interlaced @ 64K; 60Hz Non-Interlaced @ 16M
• 1024 x 768; 60Hz Non-Interlaced @ 64K
• 1280 x 1024; 60Hz Non-Interlaced @ 256

Expansion

• Two PC Card slots support two Type II or one Type III PC Cards; 32-bit CardBus ready
• SVGA video port
• Fast infrared port (4MBps, IrDA V1.1 compliant)
• PS/2 mouse/keyboard port (Y-connector supported)
• Universal Serial Bus port
• ECP parallel port
• High speed serial port (16550 UART compatible)
• Headphone
• External microphone (monaural)
• Line-in

Communications

• 3Com-Noteworthy 56K PC Card modem with V.90 support

Keyboard

• Full sized 84 keys with 12 function keys
• 3mm pitch
• Dedicated Windows keys
• Integrated AccuPoint pointing device

Video

• Chips & Technologies HiQVideo 65555 Graphics Controller
• 64-bit Graphics Accelerator
• 32-BIT PCI local bus support
• BitBLT hardware
• 2MB EDO DRAM Video Memory

Audio

• Yamaha 3D sound effect-enabled, OPL3-SA3 and software-enabled Wavetable synthesis sound
• 16-bit stereo, .WAV and Sound Blaster Pro compatible, MIDI playback
• 2 built-in stereo speakers
• Full duplex sound
• Microphone, headphone and Line-in ports

Manufacturer: Toshiba
Date: 1997
