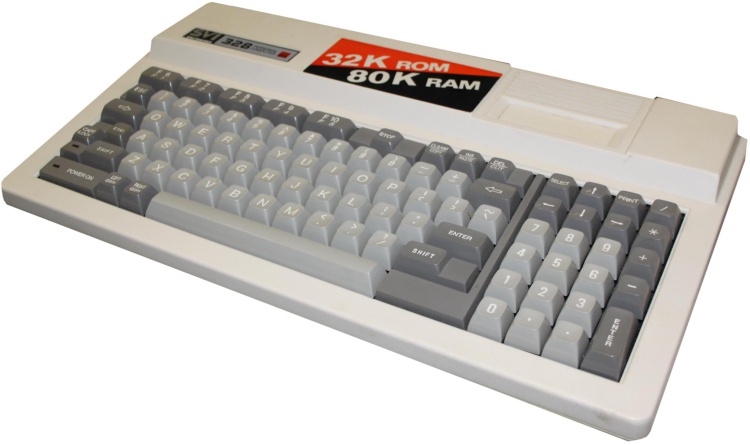

Spectravideo SVI-328 Mk II

Home > Browse Our Collection > Computers > Spectravideo > Spectravideo SVI-328 Mk II

The SVI-328 is an eight-bit personal computer released by Spectravideo in June 1983. It was similar to the previously released SVI-318 with the RAM increased to 80KB (16KB reserved for video) and a full-travel keyboard with numeric pad. The MSX standard that many later machines were designed for, was based on the SVI-328.

Specifications:

Processor: Zilog Z80A running at 3.6MHz
ROM: 32KB (16KB each for BIOS and BASIC)
RAM: 64KB
Video Display Processor: Texas Instruments TMS9918
VRAM: 16KB
Text modes: 40×24 and 32×24
Resolution: 256×192 (16 colours)
Sprites: 32, 1 colour, max 4 per horizontal line
Sound chip: General Instrument AY-3-8910 (PSG)
Programmable Peripheral Interface: Intel 8255

Manufacturer: Spectravideo
Date: June 1983
