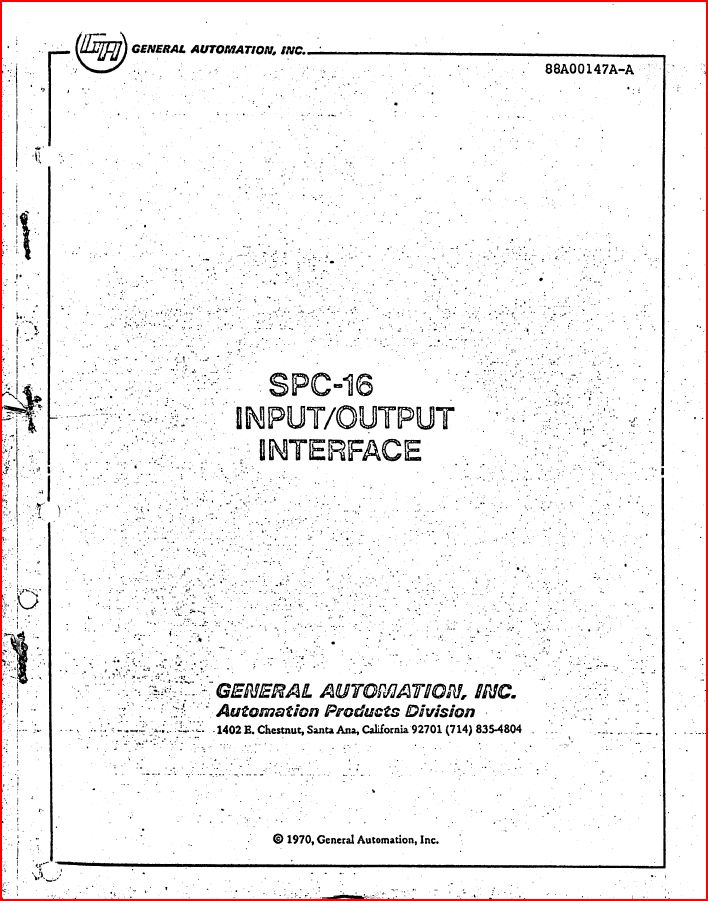

'This manual is intended to familiarize the user with the SPC-16 to I/O device interface. The manual has been sectionalized as much as possible to facilitate updating. This section contains general interface information, option descriptions, and I/O mechanical and electrical considerations. Section 2 of this manual contains interface information pertaining to the programmed I/O interface.  Section 3 contains information pertaining to the direct memory access I/O interface. Section 4 contains interrupt interface information.

It is recommended that the user be thoroughly familiar with the information presented in the SPC-16 Reference and Programming Operations manual prior to using the information contained in this manual.'

100 pages.

This document has recently been digitised and made available here. Digitising our collections requires significant resources. Please consider making a donation to the Centre if you download this manual!

Reference Number :

Date Published : 1970

Manufacturer : General Automation

Format : PDF
