Apple AirPort Exteme Base Station 54Mbps

 Home > Browse Our Collection > Computers > Apple Computers > Apple AirPort Exteme Base Station 54Mbps


The AirPort Extreme Base Station used the Wi-Fi (802.11b/g) technology to run at a frequency of 2.4Ghz with a data rate of 54Mbps.  It had a range of 150 feet and a capacity of 50 users.

The AirPort Extreme Base Station was released at the Macworld Expo.  It had new higher data transfer rates and supported wireless printing through USB. The compatible cards were released at the same time. A model released concurrently included a modem.

Specifications
Wireless Data Rate: Up to 54 Mbps
Range: 150 ft. (11 Mbps), 50 ft. (54 Mbps)
Compatibility: Wi-Fi (802.11b/g)
Frequency: 2.4 GHz
Radio output power: 15 dBm (nominal)
Supported protocols: NAT, DHCP, FTP, PPPoE, VPN Passthrough (IPSec, PPTP and L2TP), QuickTime Streaming, DNS Proxy, SNMP
Security: WPA, WPA2, and WEP (40-bit or 128-bit encryption)
Capacity: 50 users
Power over Ethernet: No
Ports: 2 - RJ-45, 1 - USB
Weight and Dimensions (US): 1.65 lbs., 6.9” D x 3.2” H
Weight and Dimensions (Metric): 565 g, 175 mm D x 80 mm H

Introduced in January 2003, the AirPort Extreme Base Station was discontinued in January 2007.

Our model has a serial number of HS3240SCPOA and is complete with PSU and Set Up Guide

Date : 2003

Manufacturer : Apple

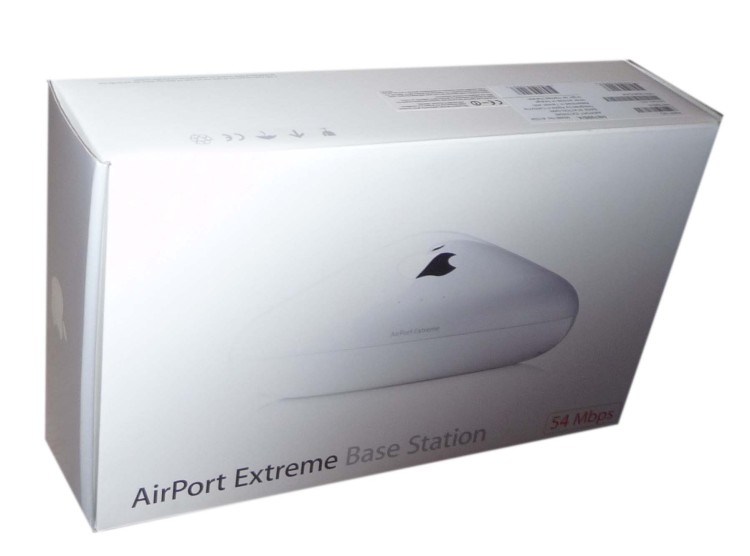

Physical Description : AirPort Extreme base station Bracket Power supply (in 2 parts) Cable Cardboard box Cardboard tray x3 Setup Guide (one in English, French & German) Warranty booklet AppleCare Service and Support Guide booklet AirPort Extreme Software Installation on CD-Rom, in paper sleeve AirPort Extreme Regulatory Certification Electronic manual information leaflet Informations importantes leaflet (in French)

This exhibit has a reference ID of CH26488. Please quote this reference ID in any communication with the Centre for Computing History.
